Strut & Ties in an instant

Design or assess Strut and Tie Models quickly and effortlessly.

GSBT was created to simplify the calculation of STMs. Systems are solved, assessed and drawn instantly based on the hydrostatic nodes method. Use GSBT to save time, money and gain a better understanding of your system and its limitations.

// Intuitive UI

// Efficient workflow

// Powerful engine

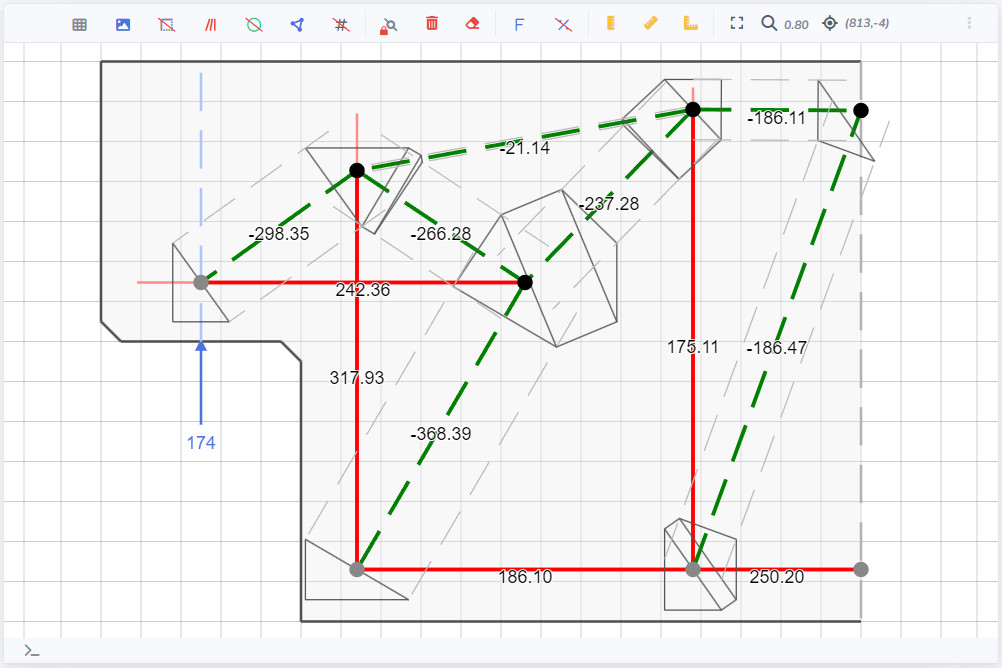

Effortless Geometry

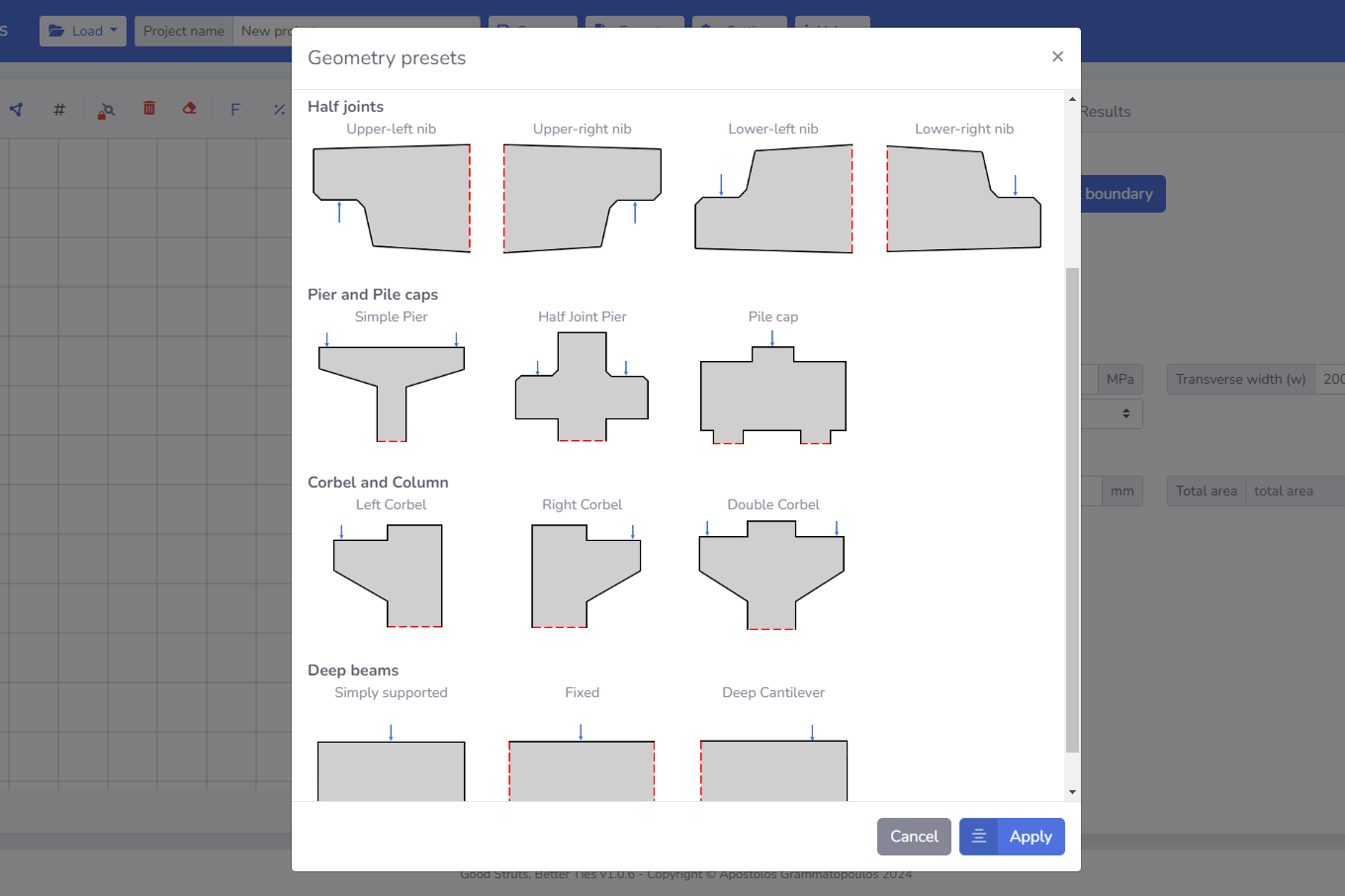

Geometry can be drawn manually or automatically from a variety of presets including Half Joints, Piers, Corbels and Deep beams.

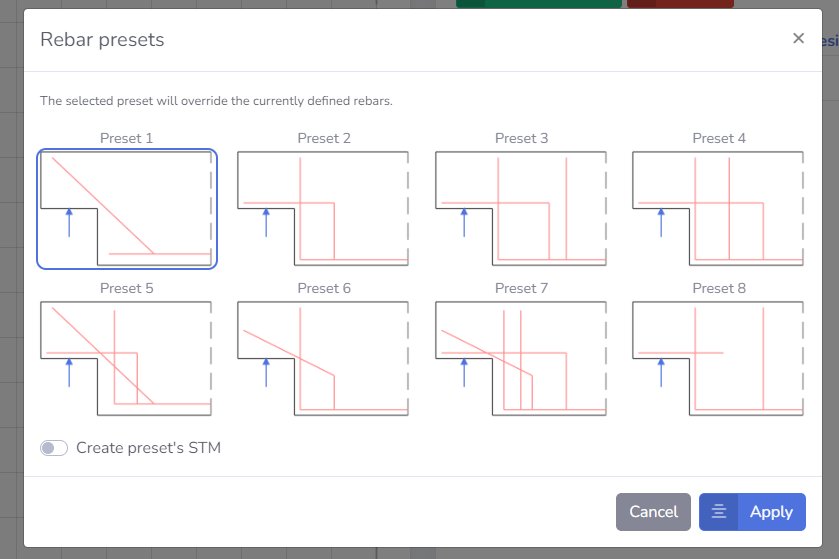

Rebar Definition

Similarly, rebars can be drawn manually or through various rebar arrangement presets.

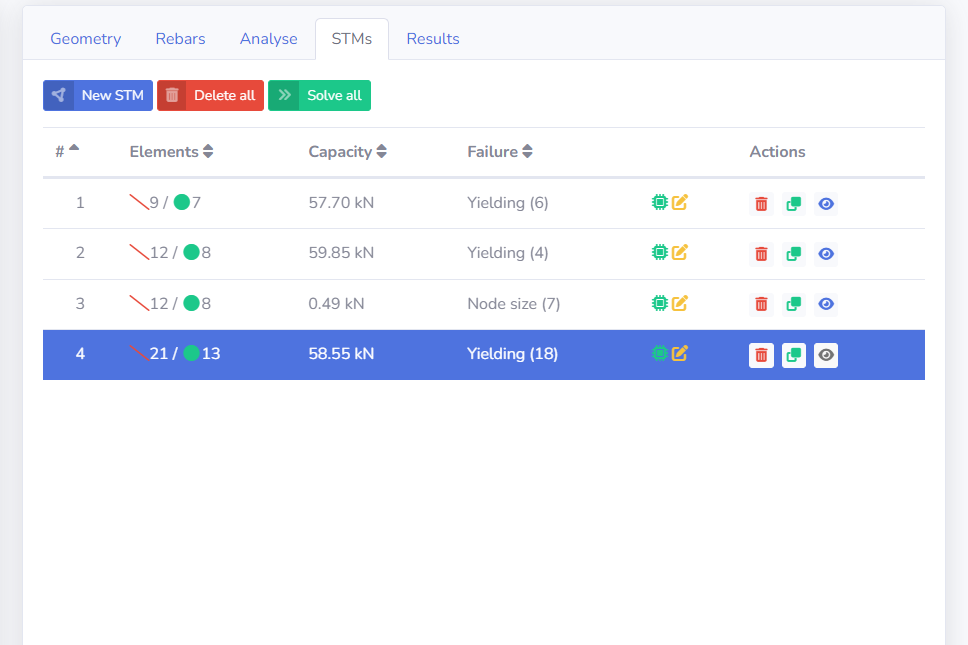

Multiple STMs

Users can define multiple STMs and switch between them until the most suitable is found.

Standards

Design or assessment checks based on EN1992-1-1 & DMRB CS 455.

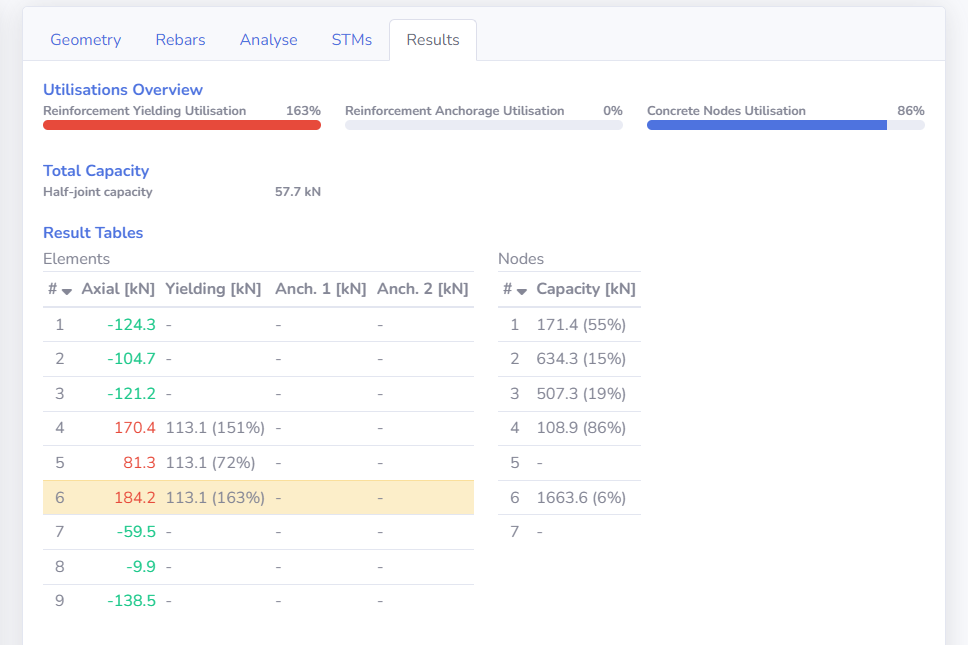

Real time results

STMs are automatically solved while the user interacts with each node.

Plethora of exports

Extract the project in a variety of formats including MS Excel, AutoCAD and LUSAS.

Reports

A detailed report can be generated with all results and calculations in a MS Word format.

Ready to streamline your whole workflow?
Try Good Struts Better Ties and see the difference for yourself.
